Toika Jaana loom

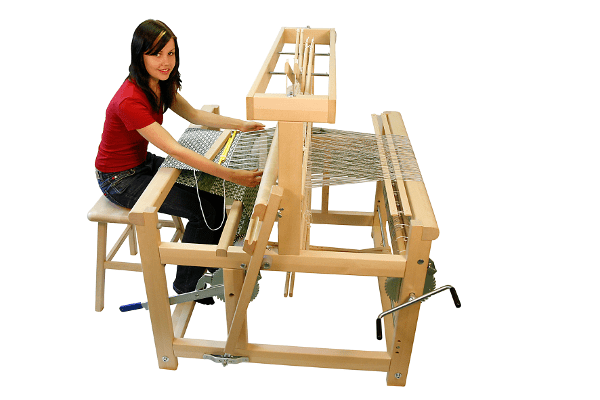

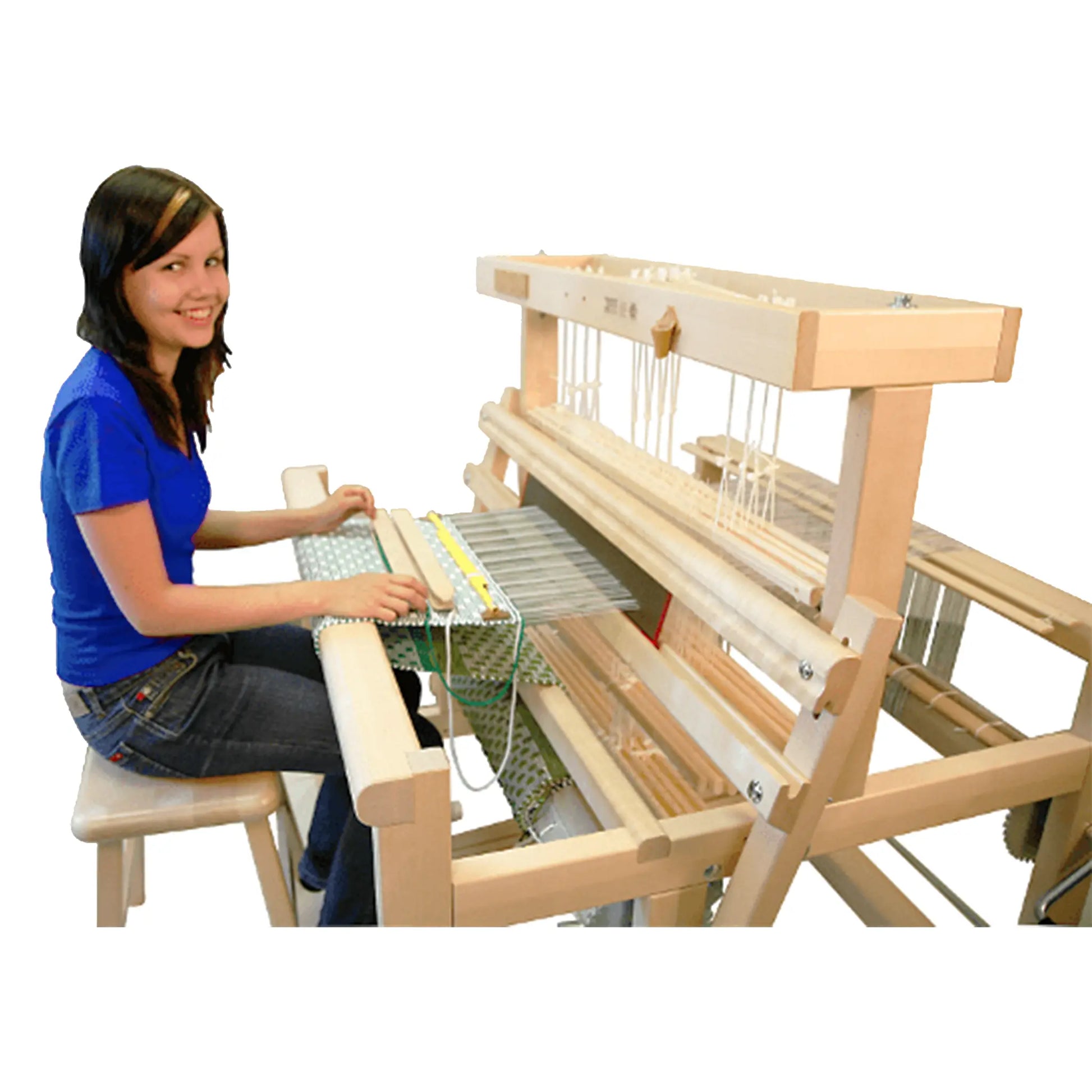

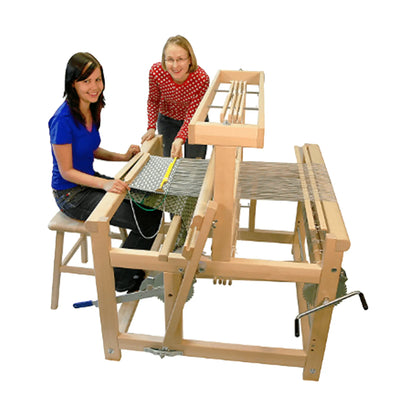

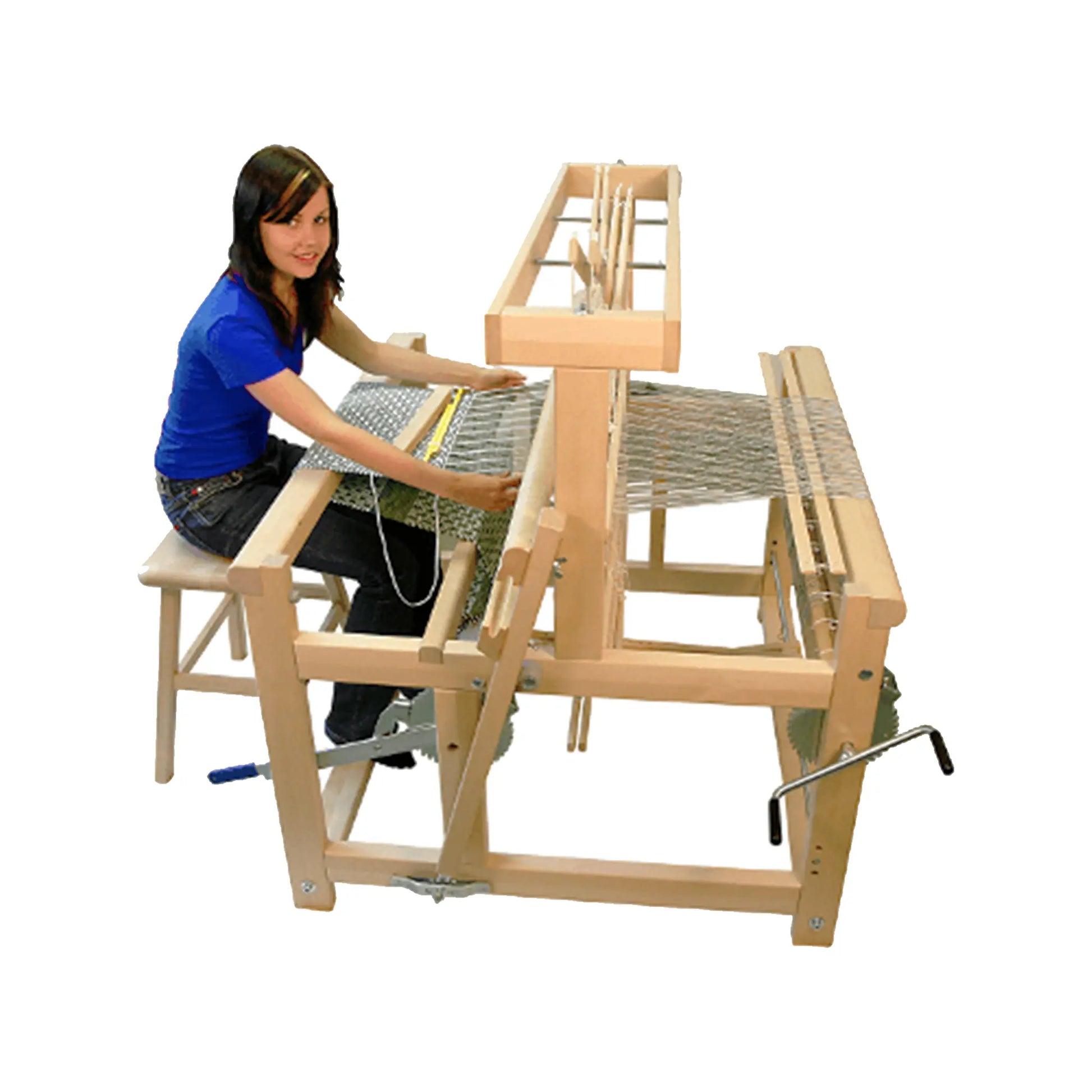

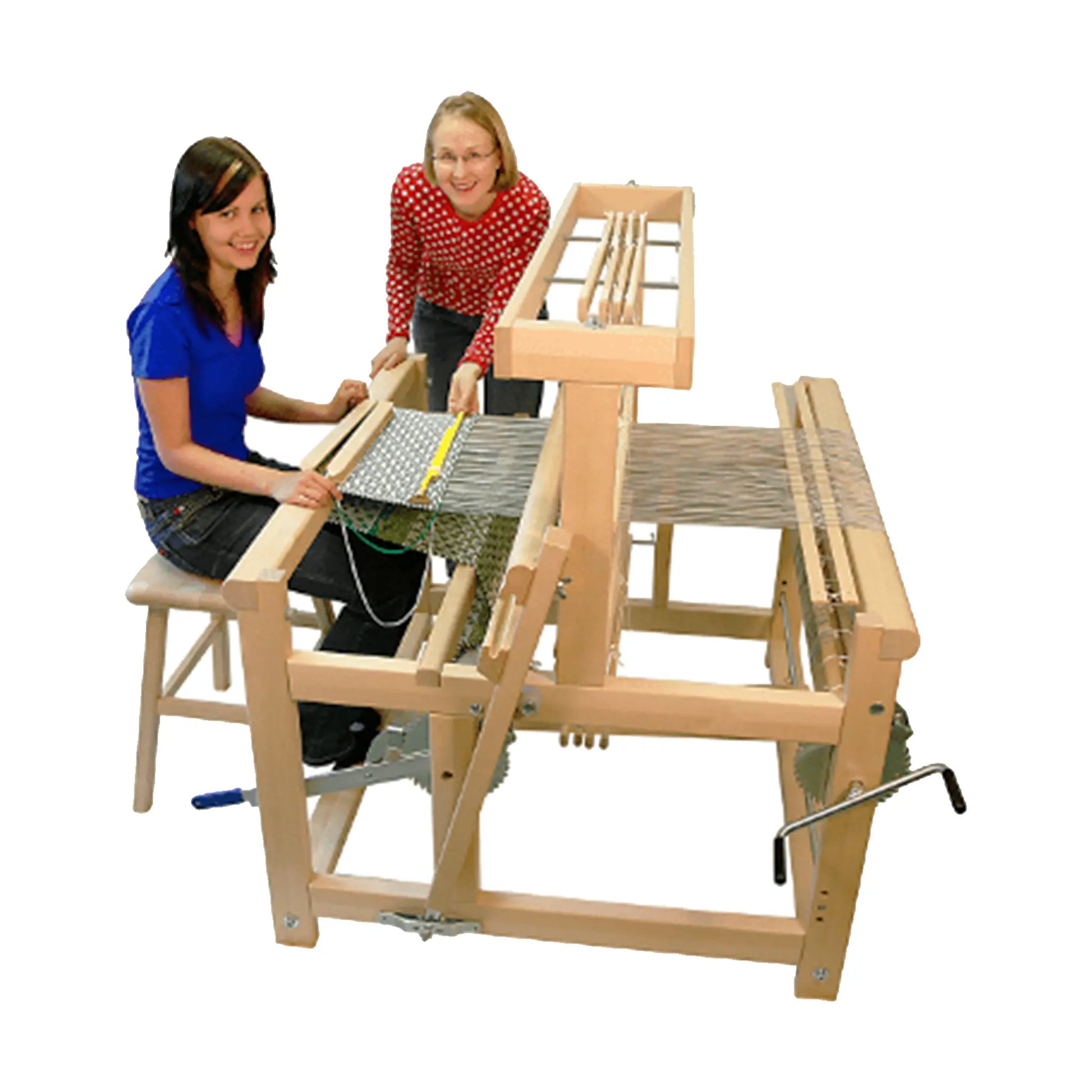

Toika Jaana loom – compact and powerful

The Toika Jaana is a high-quality countermarch loom made of lacquered Finnish birch and the more compact sister of the proven Toika Liisa. It offers the same weaving width (80 cm or 100 cm), but is smaller in all dimensions and made from slightly slimmer timber profiles. This makes it ideal for smaller spaces without compromising on stability and weaving comfort.

Thanks to its sophisticated design and high-quality workmanship, the Jaana is suitable for both ambitious hobby weavers and professional workshops.

Key features:

• Available working width: 80 cm or 100 cm
• Shafts & treadles: Optionally 4 or 8 shafts – usually the same number of treadles
• Beater: Delivered with standing beater (Standing Beater) as standard; hanging beater available as an option (not generally recommended for the Jaana)
• Dimensions: Smaller in all dimensions than the Liisa – ideal for space-saving use
• Material: Lacquered Finnish birch wood
• Tension system: Precise gear system for fine adjustment of the warp tension

Scope of delivery:

• Jaana loom
• Stainless reed 40/10 (10 dpi)
• Raddle with lid
• Robust metal spreader
• Warp bars & cross bars
• Lacing rods & shaft rods
• Laila loom bench
• Carpet shuttle 40 cm
• Weaving shuttle 34 cm
• Pre-cut Texsolv cord set for the Jaana loom
• 400 Texsolv heddles
• 50 warp rods
• Beam apron with cord loops
• Sleying hook
• Cord needle
• Scissors holder
• Cork board for paper
• Assembly and operating instructions

Technical data:

• Dimensions (WxDxH):
  • Jaana 80: 117 x 117 x 128 cm
  • Jaana 100: 137 x 117 x 128 cm
• Weight:
  • Jaana 80: 70 kg
  • Jaana 100: 80 kg

Optional extensions

• Hanging beater: for light to medium-weight fabrics (only conditionally recommended for the Jaana)
• Worm gear for stepless warp advance (available as an accessory)
• Flying shuttle
• Sectional beam or additional beam
• Additional heddles

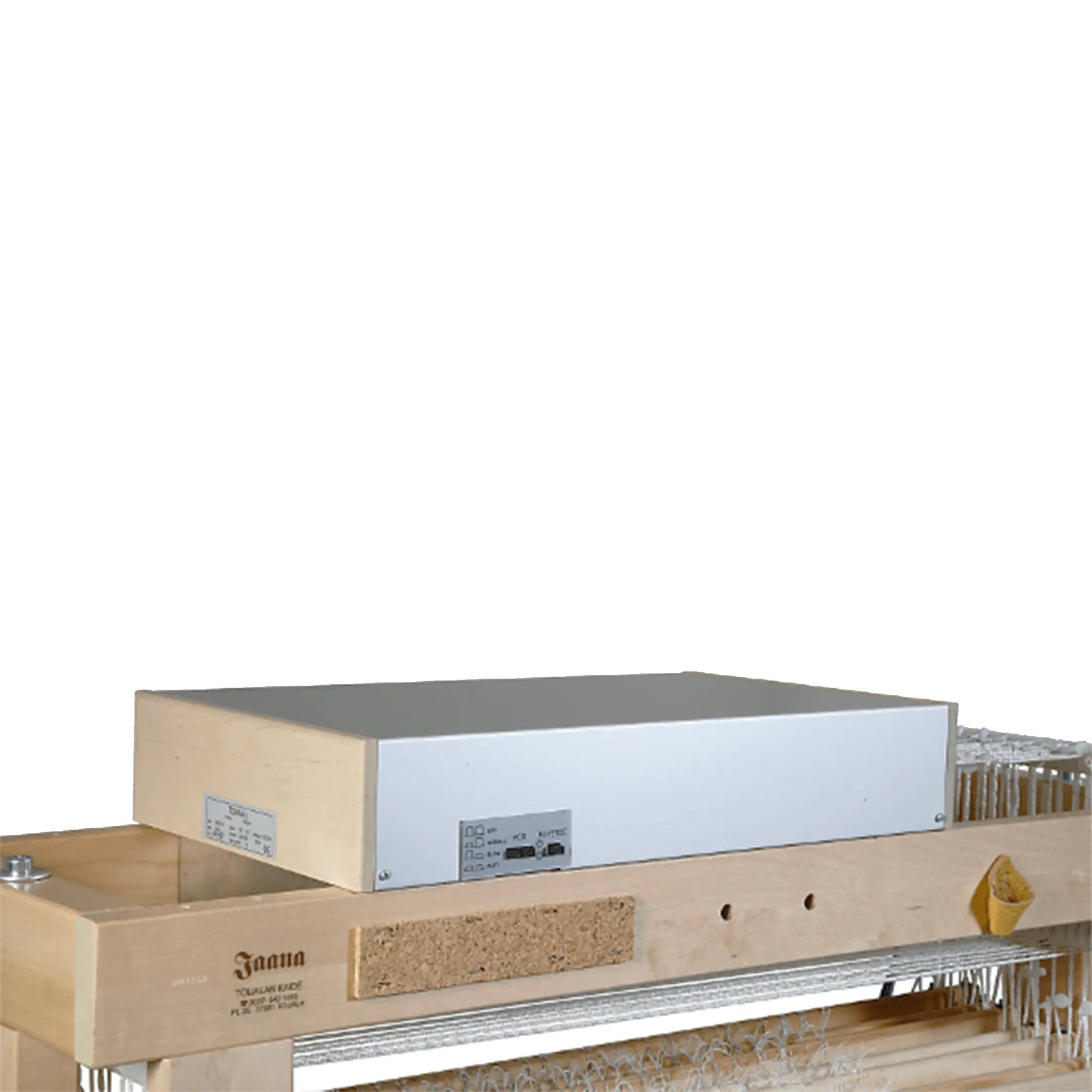

• Electronic ES16+ control system (up to 16 shafts)

Jaana vs. Liisa – The difference at a glance

The Jaana is smaller in all dimensions than the Liisa and is made from slightly slimmer timber profiles. The Liisa is more robustly built overall and offers more upgrade options: it can be fitted with a double warp beam or back beam, supports up to 24 or 32 shafts (in the longer version), and allows more flexible use of the hanging beater. Those planning for maximum flexibility and expandability in the long term should choose the Liisa. Those looking for a compact, stable, and high-quality countermarch loom for smaller spaces are perfectly served by the Jaana.

Why the Toika Jaana is the right choice:

Compact dimensions: Ideal for those who have limited space but do not want to miss out on the advantages of a countermarch loom.
Weaving width: Despite the smaller footprint, you can weave fabrics up to 100 cm wide.
Stability & quality: Made from lacquered Finnish birch wood – durable, stable, and built for many years of weaving pleasure.
Flexibly adaptable: Available with 4 or 8 shafts – suitable for a wide variety of fabric types.
Lasting craftsmanship: Solid wood and traditional construction ensure stability and long-term use.

Frequently Asked Questions (FAQs):

Is the Jaana also suitable for beginners?
Yes – its compact size makes it particularly beginner-friendly without having to forego the advantages of a countermarch loom.

What distinguishes the Jaana from the Liisa?
Both models share the same working width. However, the Jaana is smaller in all dimensions and made from slightly slimmer timber profiles. The Liisa offers more upgrade options (double warp/back beam, up to 32 shafts) and is more robustly built overall.

How many shafts are possible?
4 or 8 shafts depending on your choice. With the optional ES16+ system, up to 16 shafts are possible.

Is the worm gear included in the scope of delivery?
No, the worm gear is not part of the standard scope of delivery for the Jaana. It can however be ordered as an accessory.
