Toika

Custom Stainless Steel Reed

Custom Stainless Steel Reed

  • Traditional craftsmanshipTraditional craftsmanship
  • Creativity and self-expressionCreativity and self-expression
  • Relaxation and stress reliefRelaxation and stress relief
Regular price 76,50€
Regular price Sale price 76,50€
Sale Sold out
Incl. VAT Shipping calculated at checkout.
Weaving width
Fineness

Delivery time: 2 to 3 weeks

For delivery within the EU.

EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR

Custom-made stainless steel reed

Weaving reed made to measure from rustproof stainless steel, built in the traditional way from quality materials. The dents are fixed with specially treated binding yarn, so they stay exactly in place for good.

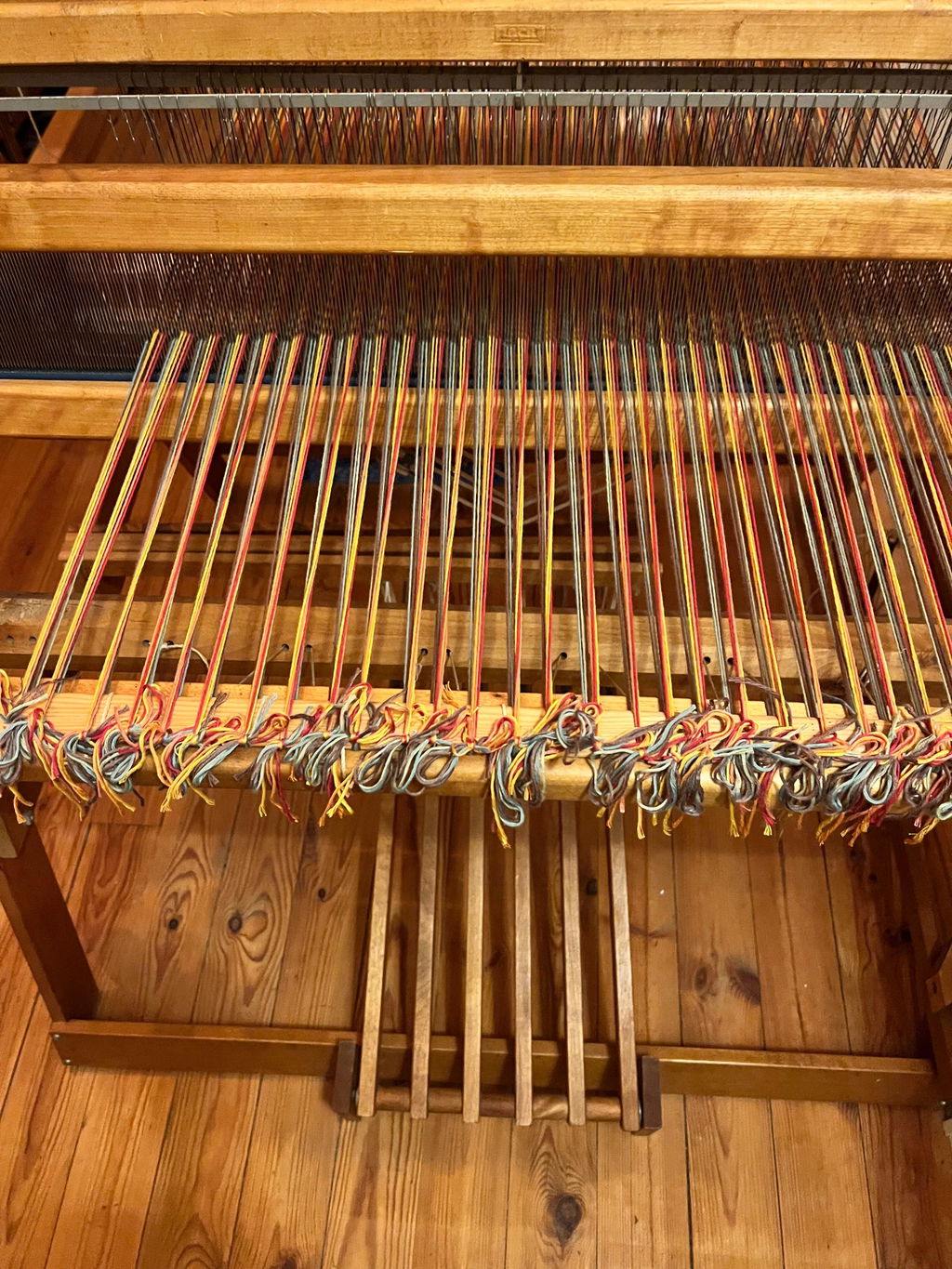

The reed sits in the beater of your loom. It holds the warp threads at the width you want, spaces them evenly and beats the weft into place. How dense your warp is depends on the reed size and on how many threads you sley through each dent.

Weaving width:
35 cm, 40 cm, 45 cm, 50 cm, 55 cm, 60 cm, 70 cm, 80 cm, 90 cm, 100 cm, 110 cm, 120 cm, 130 cm, 140 cm, 150 cm, 160 cm, 185 cm, 200 cm

Reed size:
20/10, 25/10, 30/10, 35/10, 40/10, 45/10, 50/10, 60/10, 70/10, 80/10, 90/10, 100/10

The reed size gives the number of dents per 10 cm (for example 40/10 = 40 dents per 10 cm).

For sizes not listed, please email us before ordering.

Details

  • Height: 12 cm (outside measurement)
  • Weaving width: refers to the inside measurement. The overall width of the reed is about 2.5 cm more than the weaving width.
  • Material: stainless steel
  • Packaging: wrapped in protective film, safe from dust and moisture in storage and transit

Before ordering, please check that the height and overall width fit the beater of your loom.

When is a custom reed worth it?

Many makers only offer a few widths and reed sizes for their looms. For an older loom, a loom whose maker no longer exists, or an unusual reed size, a custom reed is often the only option. With 18 widths from 35 to 200 cm and 12 reed sizes from 20/10 to 100/10, you will find a size for most looms here. For Louët looms there is also the Louët stainless steel reed, made to fit the Louët beaters exactly.

Finding the right size

The width in the shop is the inside measurement, meaning the area that holds the dents. The whole reed is about 2.5 cm wider. So measure two things on your beater:

  • Width: the space between the two sides of the beater. The reed including its frame has to fit there, so weaving width plus about 2.5 cm.
  • Height: the distance between the groove at the bottom of the beater and the top bar. The reed is 12 cm high on the outside.

The width of the reed depends on your loom, not on your project. Even for a narrow scarf you use the full width reed and sley the warp in the centre over only part of it. If you are not sure, send us the measurements of your beater and the name of your loom.

Understanding reed sizes

The reed size gives the dents per 10 cm. A 40/10 reed has 40 dents per 10 cm, so 4 dents per centimetre. With two threads in each dent you get 8 warp ends per centimetre. You can also sley one or three threads per dent or leave dents empty, so one reed covers several setts.

Patterns from the US and the UK often use dents per inch (DPI) or ends per inch (EPI). To convert, divide the dents per 10 cm by 3.937:

  • 20/10 is about 5 dents per inch
  • 30/10 is about 7.6 dents per inch
  • 40/10 is about 10 dents per inch
  • 50/10 is about 12.7 dents per inch
  • 60/10 is about 15 dents per inch
  • 80/10 is about 20 dents per inch
  • 100/10 is about 25 dents per inch

Which reed size for which yarn?

A few examples from our yarn range, each with two threads per dent:

Coarse reeds such as 20/10 or 25/10 are meant for thick yarns, the fine ones from 70/10 for very thin yarns. It is best to weave a small sample first, so you can see whether you like the sett.

Prices by width and reed size

The price depends on the weaving width and the reed size. The reed sizes fall into five price levels:

Weaving width20/10 to 35/1040/10 to 50/1060/10 and 70/1080/10 and 90/10100/10
35 cm€76.50€83.50€89.50€97.50€103.50
40 cm€76.50€83.50€89.50€97.50€103.50
45 cm€76.50€83.50€89.50€97.50€103.50
50 cm€76.50€83.50€89.50€97.50€103.50
55 cm€76.50€83.50€89.50€97.50€103.50
60 cm€76.50€83.50€89.50€97.50€103.50
70 cm€81.50€90.50€99.00€104.50€115.00
80 cm€87.00€102.50€103.50€113.00€124.50
90 cm€94.00€106.00€109.50€122.00€132.50
100 cm€98.00€110.00€114.00€127.50€141.50
110 cm€110.00€125.00€132.00€146.00€162.50
120 cm€112.50€127.50€135.00€151.00€170.50
130 cm€132.00€151.00€158.00€176.50€200.00
140 cm€132.00€151.00€158.00€176.50€200.00
150 cm€135.00€153.00€160.50€179.00€202.50
160 cm€149.50€168.00€178.00€199.00€220.50
185 cm€172.00€196.00€208.50€230.50€258.00
200 cm€189.00€215.00€227.50€253.50€283.50

Accessories

A sley hook makes threading the warp through the reed much easier. You will find more reeds and holders under Reeds and holders and everything else for your loom in our accessories.

Frequently asked questions

Will the reed fit my loom?

That depends on your beater. What matters is the height of 12 cm and the overall width, about 2.5 cm more than the weaving width. Measure your beater before ordering. If you are not sure, send us the measurements and the name of your loom.

My width or reed size is not listed. What now?

Email us before ordering with the width and reed size you need. We will then check whether that size can be made.

Can I follow a pattern in inches with a metric reed?

Yes. Convert ends per inch to ends per 10 cm by multiplying by 3.937: 20 ends per inch is just over 78 ends per 10 cm. Because it does not divide evenly, your warp will be slightly wider or narrower in the reed than in the pattern. For 20 ends per inch, for example, a 40/10 reed with two threads per dent works well.

Do I need a separate reed for every yarn?

No. Since you can sley one, two or three threads per dent, one reed covers several setts. A second reed is worth it if you often weave much finer or coarser than your current reed allows.

If you have any questions about the custom reed, please use the contact form below.
