Leclerc Diana Loom 24" 16-Shaft Dobby
Leclerc Diana Loom 24" 16-Shaft Dobby
Traditional craftsmanship
Creativity and self-expression
Relaxation and stress relief
Couldn't load pickup availability

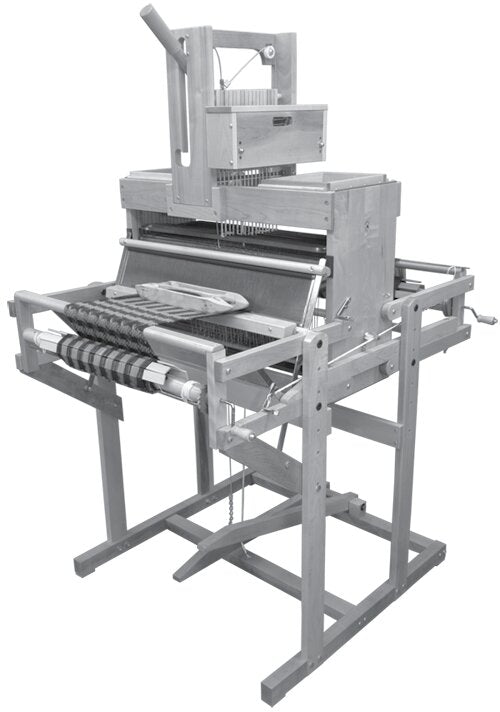

The 16-shaft dobby loom for table and floor use
The Leclerc Diana is a computer-controlled dobby loom with 16 shafts. If you love complex pattern weaving and want to stop re-tying for every new threading, this is the loom for you. Connect the included interface box to your Mac or PC and control the shafts directly from the screen. The operating handle at the front of the frame opens the shed, locks it, and leaves both hands free for throwing the shuttle.
The Diana works as a table loom or, with the included 2-treadle stand, as a floor loom. Its foldable design makes transport and storage straightforward.
Technical Specifications
| Weaving width | 60 cm (24") |
| Loom width | 71 cm (28") |
| Loom depth | 91 cm (36") |
| Loom height | 80 cm (31.5") |
| Folded dimensions | 71 cm W, 51 cm D, 79 cm H |
| Weight (with stand) | 25 kg (55 lbs) |
| Shafts | 16, computer dobby |
| Heddles | 1000 (9.5" heddle height) |
| Material | Canadian maple, cast aluminium |
| Reed | Stainless steel, 12 dents/inch |
| Software | Mac and PC compatible (not included) |
What is included
- Loom with 16 shafts and interface box
- 2-treadle floor stand
- Stainless steel reed, 12 dents/inch
- 2 head trays
- 1000 heddles, 9.5" heddle height
- 1 boat shuttle (6122-1000)
- 1 reed and heddle hook (6141-7000)
- 10 lashing cords
- 2 metal rods
- Instructional video
- Book "Warp and Weave"
Frequently asked questions
Do I need specific software?
The Diana works with standard weaving design software for Mac and PC. Software is not included; contact us for compatible programme recommendations.
Can I set it up alone?
Yes. The Diana arrives partially assembled and one person can complete the build. The treadle stand attaches in just a few steps.
How does the Diana differ from the Weavebird?
Both are Leclerc computer dobbys, but the Weavebird is a dedicated floor loom available in wider widths and up to 32 shafts. The Diana is smaller, portable, and also usable as a table loom.
