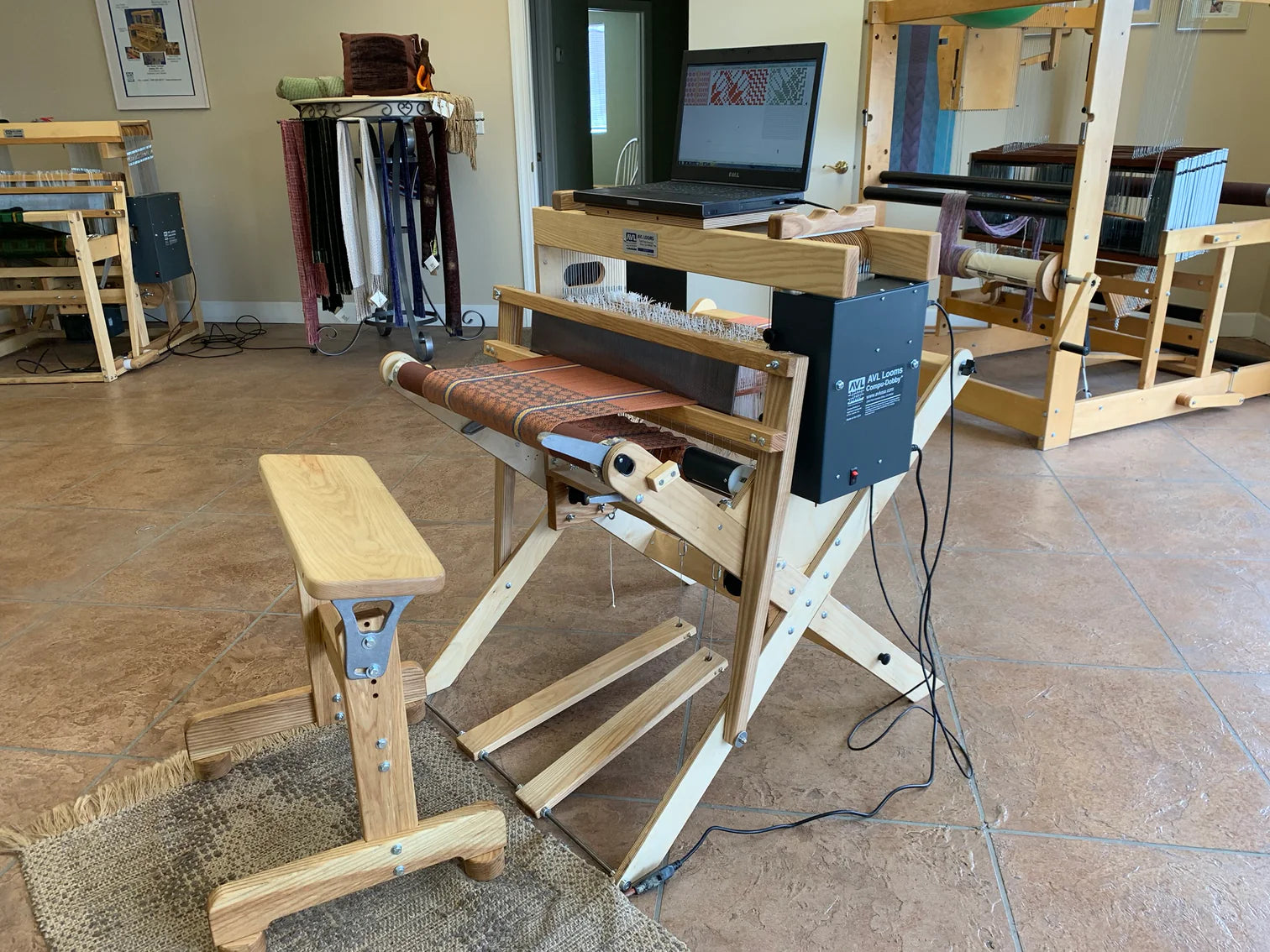

AVL Workshop Dobby Loom

AVL Workshop Dobby Loom (WDL) - Portable Computer-Controlled Dobby Loom

The AVL Workshop Dobby Loom (WDL) combines the performance of a professional computer-controlled dobby loom with exceptional mobility. Known as the legendary "California Traveler," this innovative loom was specially developed for weavers who require the highest precision, maximum flexibility, and easy transportability.

Equipped with the proven AVL Compu-Dobby® 5 System and available with up to 24 shafts, the Workshop Dobby Loom opens up virtually unlimited design possibilities for complex weaves, pattern developments, and creative textile projects.

Whether in the studio, for training, at workshops, or demonstrations – the AVL Workshop Dobby Loom delivers professional results in a compact and portable format.

Why the AVL Workshop Dobby Loom?

Professional Dobby Technology
With the integrated AVL Compu-Dobby® 5 System, even complex weaving patterns can be implemented precisely and efficiently. The electronic shaft control allows for significantly greater pattern freedom than traditional shaft looms.

Legendary Mobility
The Workshop Dobby Loom was developed for mobile use. Thanks to its innovative design, the loom can be quickly assembled and disassembled and easily transported – even with a project already set up.

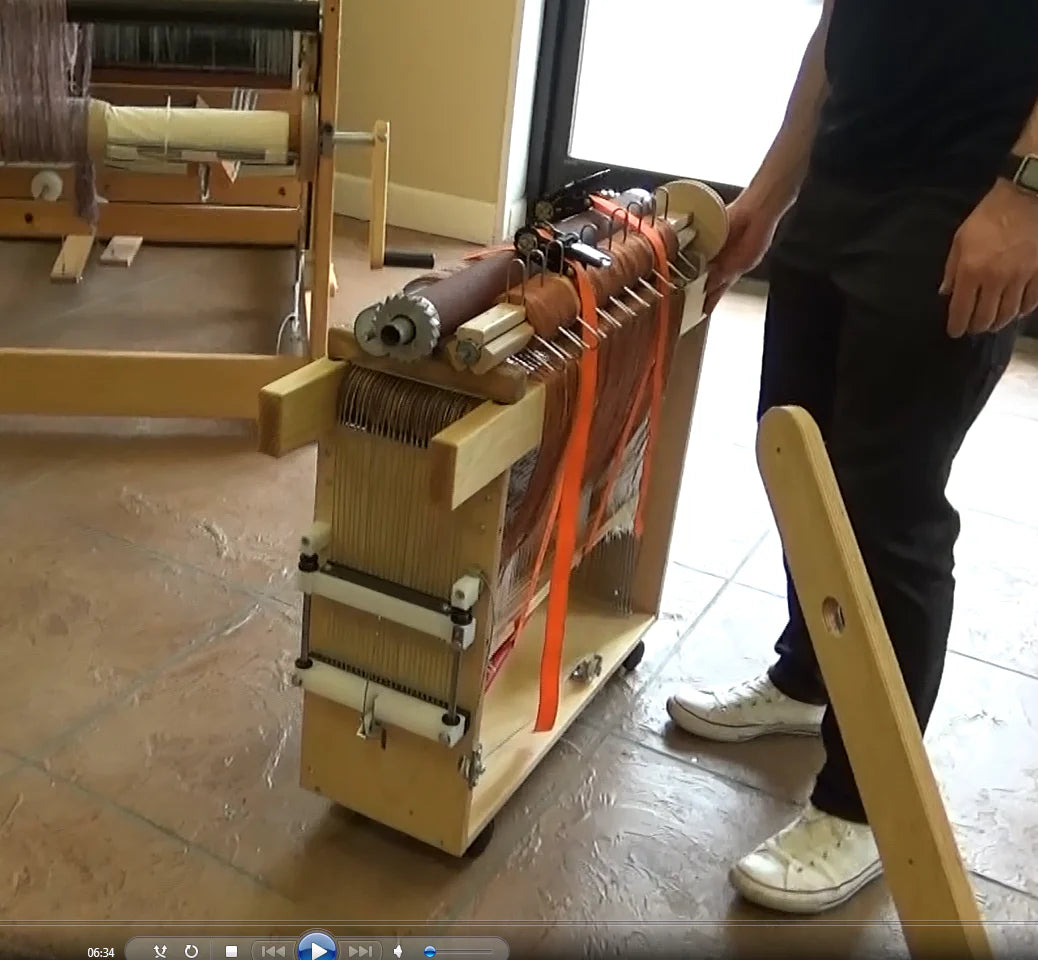

Interchangeable Design Unit (IDU)
The heart of the WDL is the unique Interchangeable Design Unit. Multiple design units can be prepared, significantly speeding up project changes and saving valuable production time.

Space-Saving Studio Design
Ideal for creative studios, training facilities, and weavers with limited space. The compact design offers professional performance without the size of an industrial production loom.

Scope of Delivery:

The AVL Workshop Dobby Loom includes the following components:

• AVL Workshop Dobby Loom in the chosen configuration
• AVL Compu-Dobby® 5 Computer System
• Interchangeable Design Unit (IDU) with integrated wheels

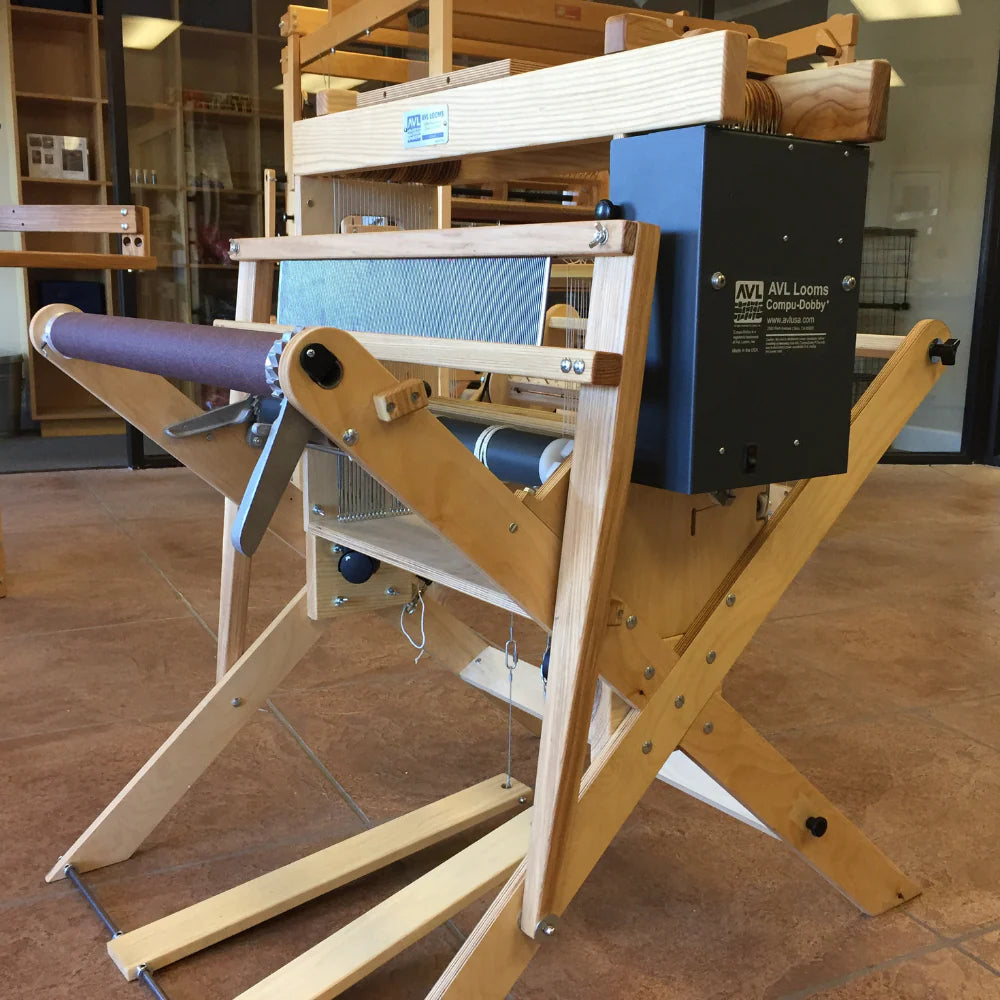

• X-Frame stand
• Bottom Swing Beater
• Stainless steel reed in the chosen dent size

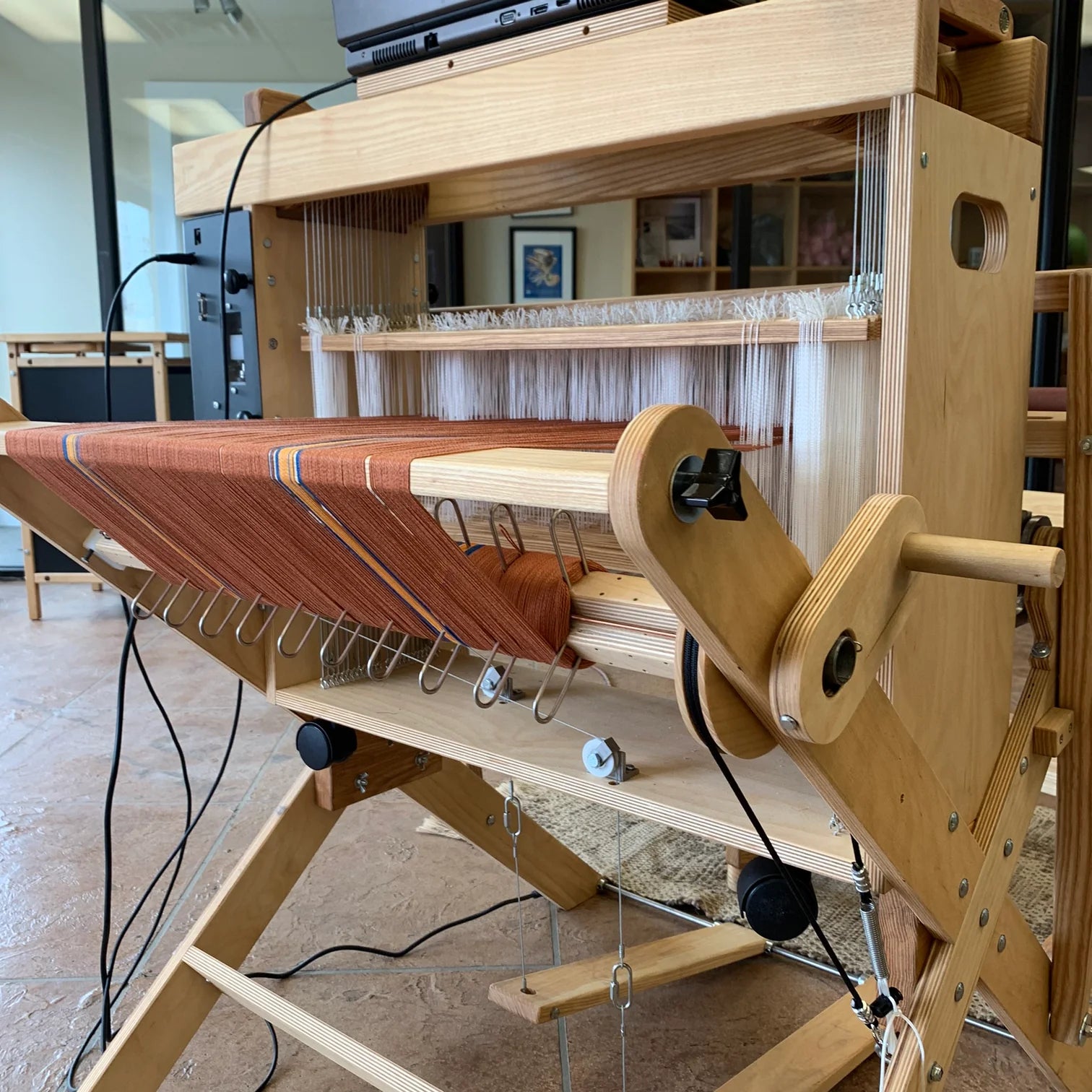

• Sectional Warp Beam
• AVL Sticky Front Beam
• 25 polyester heddles per shaft
• User Manual
• Standard 2-year manufacturer's warranty

Technical Data

Specification	16" Model	24" Model
Weaving Width	40.5 cm (16")	61 cm (24")
Height	109 cm	109 cm
Overall Width	66 cm	88.9 cm
Depth	99 cm	99 cm
Weight	21 kg	35 kg
Available Shafts	8, 16 or 24 shafts	8, 16 or 24 shafts
Dobby System	AVL Compu-Dobby® 5	AVL Compu-Dobby® 5
Frame Construction	X-Frame	X-Frame
Beater	Bottom Swing Beater	Bottom Swing Beater
Warp Beam	Sectional Warp Beam	Sectional Warp Beam
Front Beam	AVL Sticky Front Beam	AVL Sticky Front Beam
Heddles	25 polyester heddles per shaft	25 polyester heddles per shaft
Reed	Stainless steel reed (optional 6, 8, 10, 12 or 15 dent)	Stainless steel reed (optional 6, 8, 10, 12 or 15 dent)
Transportability	Yes, with IDU system and wheels	Yes, with IDU system and wheels
Warranty	2-year manufacturer's warranty	2-year manufacturer's warranty

State-of-the-Art Dobby Control for Maximum Efficiency

The integrated AVL Compu-Dobby® 5 offers a powerful and future-proof control solution for demanding weaving projects. Thanks to its web-based architecture, the system can be used flexibly on various devices and ensures precise, reliable shaft control for every weaving process.

Your Advantages at a Glance

✔ Management and storage of extensive weaving pattern files (WIF)

✔ Cross-platform compatibility with Windows, macOS, Linux, Chromebooks, and tablets

✔ Direct access via modern web browsers – no software installation required

✔ Flexible connection via WLAN or USB

✔ Integrated AVLDrive function for convenient data management

✔ Fast and precise shaft selection for complex patterns

✔ Intuitive LED status indicators for easy operation

✔ Automatic system diagnostics for monitoring important functions

✔ Regular online updates for continuous improvements and new features

The Compu-Dobby® 5 combines modern technology, user-friendliness, and highest reliability, making it one of the most advanced dobby controls for handlooms.

The Advantages at a Glance

Maximum Creativity
Complex weaves and patterns can be realized easily and efficiently with dobby technology.

Time Savings
Thanks to electronic shaft control and interchangeable design units, projects can be completed faster.

Flexibility
From the studio to the workshop - the Workshop Dobby Loom adapts to your requirements.

AVL Quality
Benefit from decades of experience of one of the world's leading manufacturers of professional weaving technology.
