AVL V-Series Loom with E-Lift

AVL V-Series: Up to 40 Shafts. Compact Size. Limitless Patterns.

The AVL V-Series is the most elegant and accessible loom in the entire AVL lineup – and one of the most powerful in its class. With up to 40 shafts, the integrated Compu-Dobby® 5, and the electronic E-Lift system, it enables the most complex weave structures in the smallest space. At just 124 cm tall, it fits comfortably in any corner of your studio, classroom, or living room.

• ✔ Up to 40 shafts – mathematically over 100 billion different patterns possible
• ✔ Compu-Dobby® 5 – compatible with WeavePoint, Fiberworks, and all standard .wif files
• ✔ E-Lift Dobby Assist – electronic shaft lifting with a light touch of the foot, ideal for joint problems
• ✔ Low profile – just 124 cm tall, minimal footprint in the studio

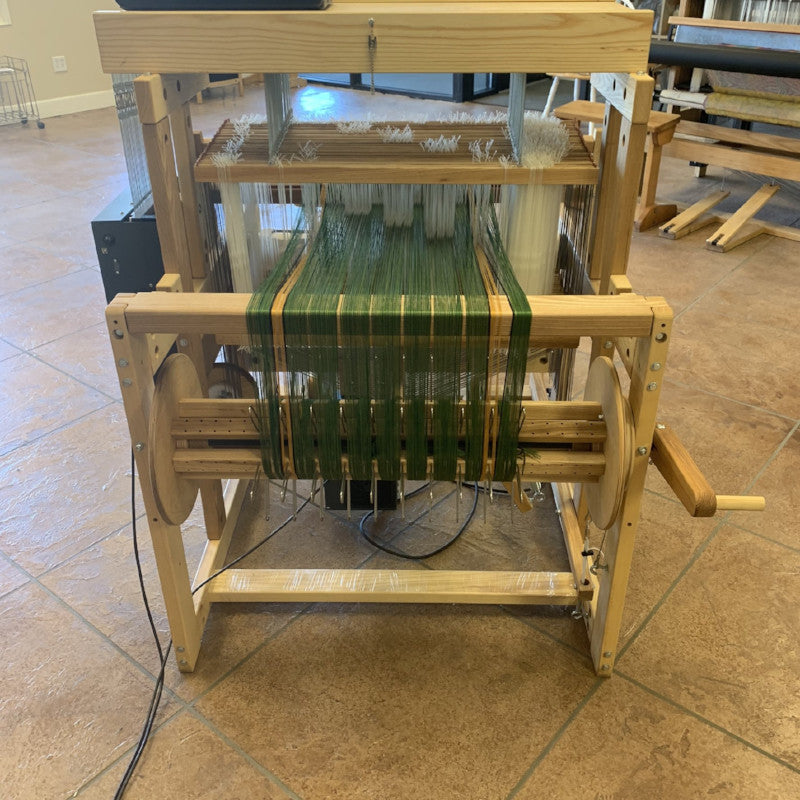

• ✔ Two weaving widths – 76 cm (30") or 102 cm (40")
• ✔ Kiln-dried hardwood – handcrafted in Chico, California, USA

Why the AVL V-Series?

Maximum creative freedom in a small footprint. The V-Series combines the creative power of a professional multi-shaft loom with the footprint of a compact machine. With 40 shafts, you'll weave structures that are simply unthinkable on a conventional 8- or 16-shaft loom – in a machine that takes up barely more space than an armchair.

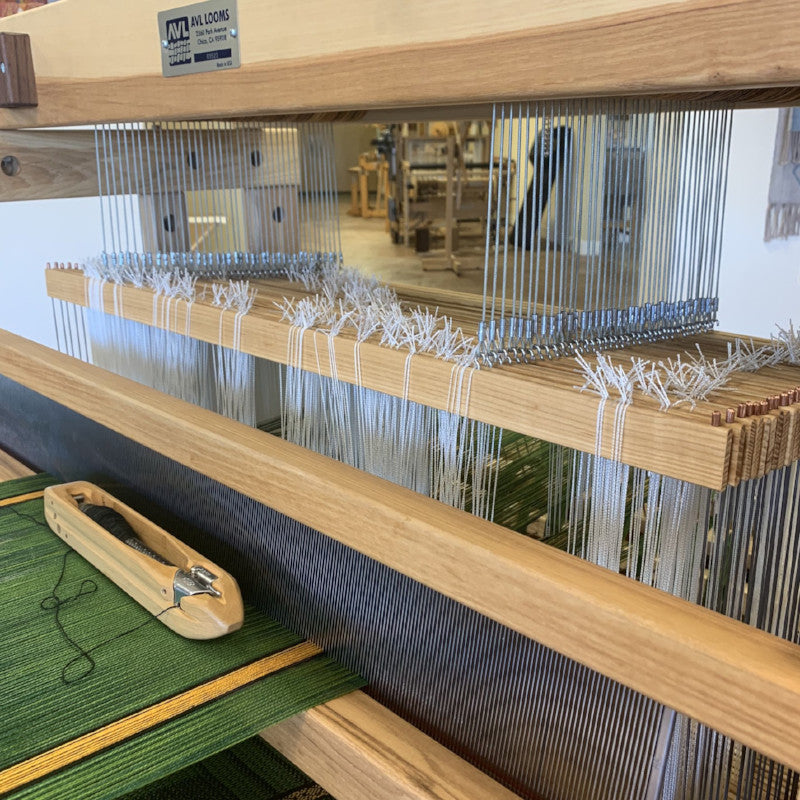

E-Lift makes weaving more accessible than ever. The electronic lift system raises and lowers the shafts with a gentle tap of the foot – no more strenuous treadling. Those with knee, hip, or back issues benefit especially. The weaver remains at the center: their rhythm, their technique, their feel for the fiber.

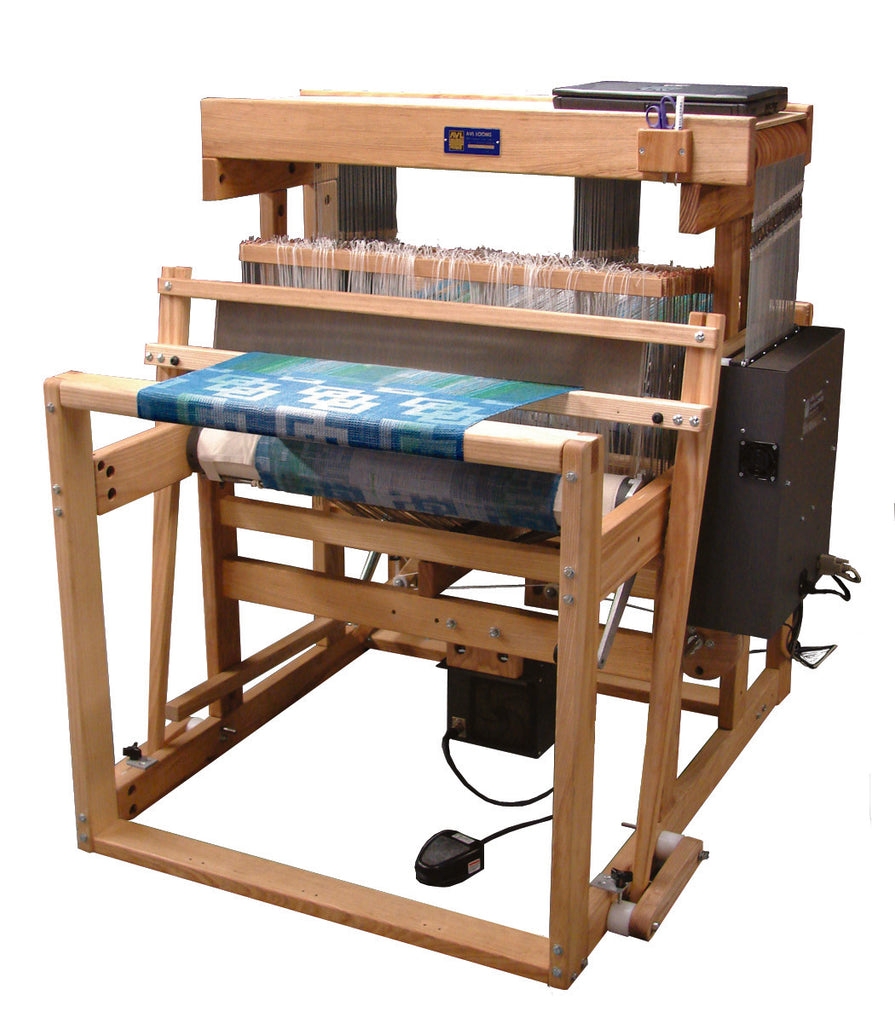

Full software compatibility. The Compu-Dobby® 5 reads every .wif file and works with the most common weaving programs. The free AVL Drive software is included. You design on screen, the loom executes it pick by pick.

Technical Specifications

	76 cm (30")	102 cm (40")
Height	124 cm	124 cm
Total width (with Compu-Dobby)	114 cm	140 cm
Depth (with sectional beam)	127 cm	127 cm
Footprint	92 × 119 cm	118 × 119 cm
Weight	80 kg	122.5 kg

What's Included & Options

Everything you need to start weaving right away – included:

• Compu-Dobby® 5 with E-Lift Dobby 3 Assist – your direct gateway to complex patterns without strenuous treadling
• Standard beater – for precise, even beat from the very first pick
• Warp beam with apron and rod – solid foundation for your first projects
• Built-in shelf – everything within reach, no extra furniture needed
• Locking brake – stable and secure, even during intensive weaving sessions
• Built-in track – ready for the optional tension box
• 25 polyester heddles per shaft + 200 spare heddles – you start with a generous buffer
• Stainless steel reed of your choice – 24/10, 32/10, 40/10, 48/10 or 60/10, matched to your yarn
• Tool holder – everything in its place
• Illustrated manual – clear, practical, and ready to use
• AVL standard warranty – quality you can count on
• 1-year Handweaving.net membership – inspiration and community included
• 220V power supply – ready to plug in across Europe

Optional upgrades available on request:

• Sectional beam – for precise warp tension on longer projects
• Dynamic Warp Tension System (DWTS) – automatic tension control for demanding materials

Frequently Asked Questions

Which weaving software is compatible? WeavePoint, Fiberworks, PixeLoom, and any other software that exports .wif files. AVL Drive is also included free of charge.

Is the V-Series suitable for beginners in computer dobby? Yes. The brake system and breast beam behave like classic looms – familiar to most weavers. The Compu-Dobby requires a short learning curve, well supported by the manual and AVL support.

Can I use the loom for production quantities? The V-Series is optimized for studio weaving, teaching, and creative work. For continuous production quantities, we recommend the AVL A-Series.

What distinguishes the V-Series from the K-Series? The K-Series is a classic countermarch dobby with a wider range of options (up to 102 cm). The V-Series is more compact, lighter, and thanks to E-Lift requires significantly less effort when treadling.
