AVL K-Series Loom

AVL K-Series Loom | The Most Advanced Handloom for Complex Weaving

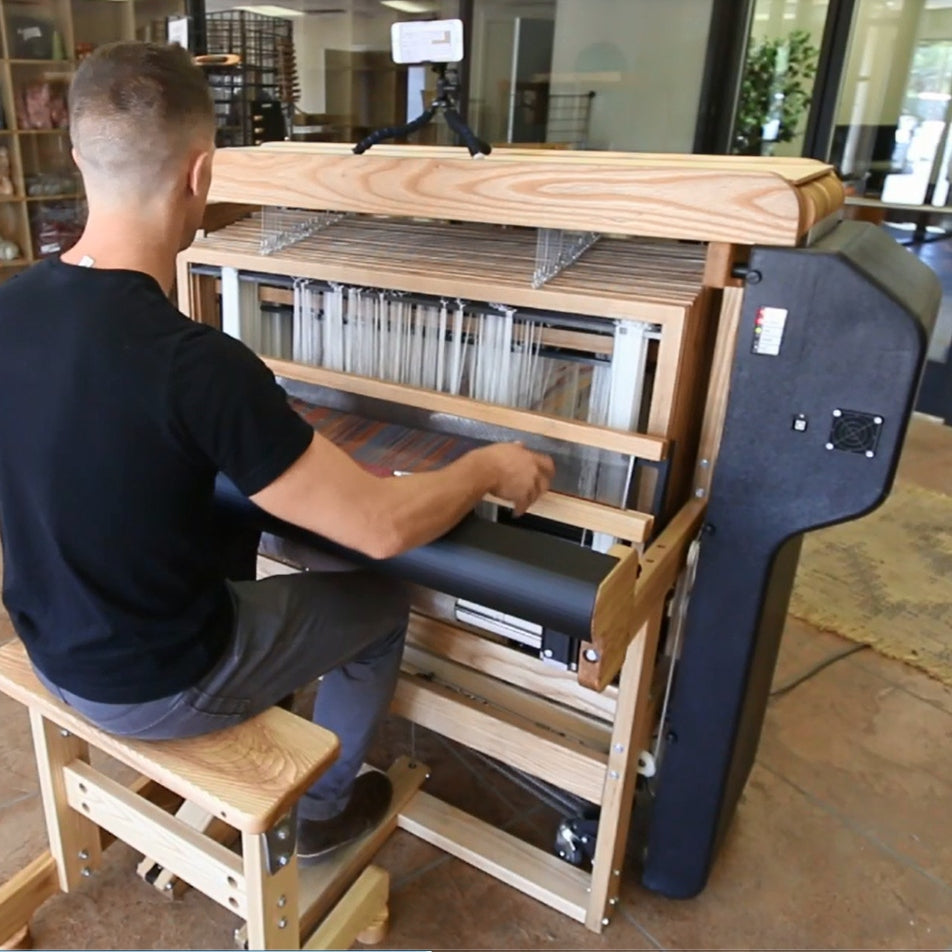

You left simple patterns behind long ago. You weave complex structures, multi-layered weaves, demanding pattern sequences — and you want a tool that works with you, not against you. The AVL K-Series Loom was built exactly for you. With an integrated Compu-Dobby®, digital warp tension system, and up to 40 shafts, it sets new benchmarks in handweaving. For the first time, treadling 40 shafts is not just possible — it’s effortless.

Highlights

✔ Integrated Compu-Dobby® – control directly in your browser, no software installation required
✔ WiFi & USB connectivity – connect laptop, tablet, or smartphone instantly
✔ 8 to 40 shafts – for limitless pattern complexity
✔ Digital dynamic warp tension – adjustment at the touch of a button, without interruption

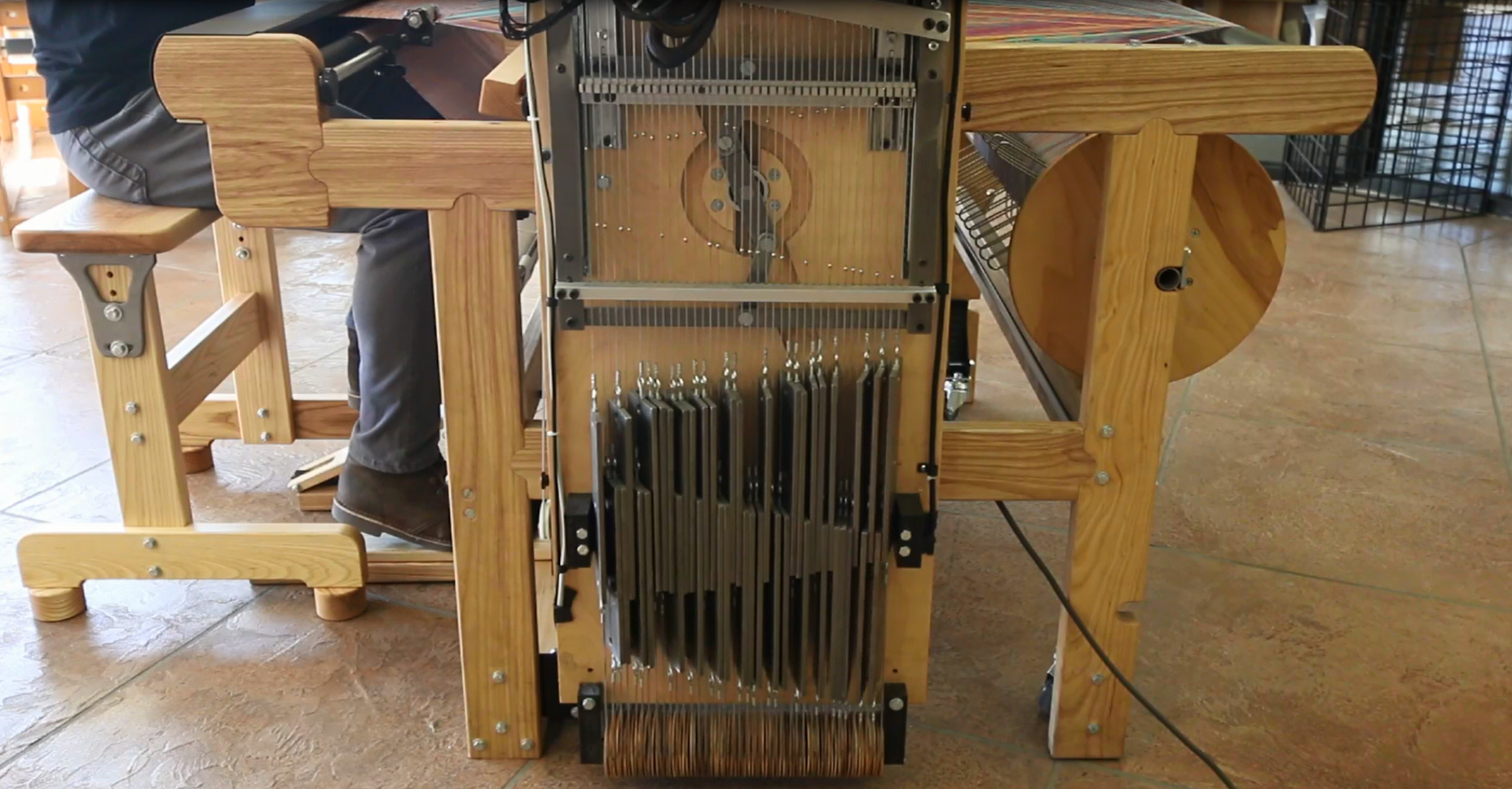

✔ Countermarch dobby with center shed for larger, cleaner sheds
✔ No crawling under the loom for tie-up changes

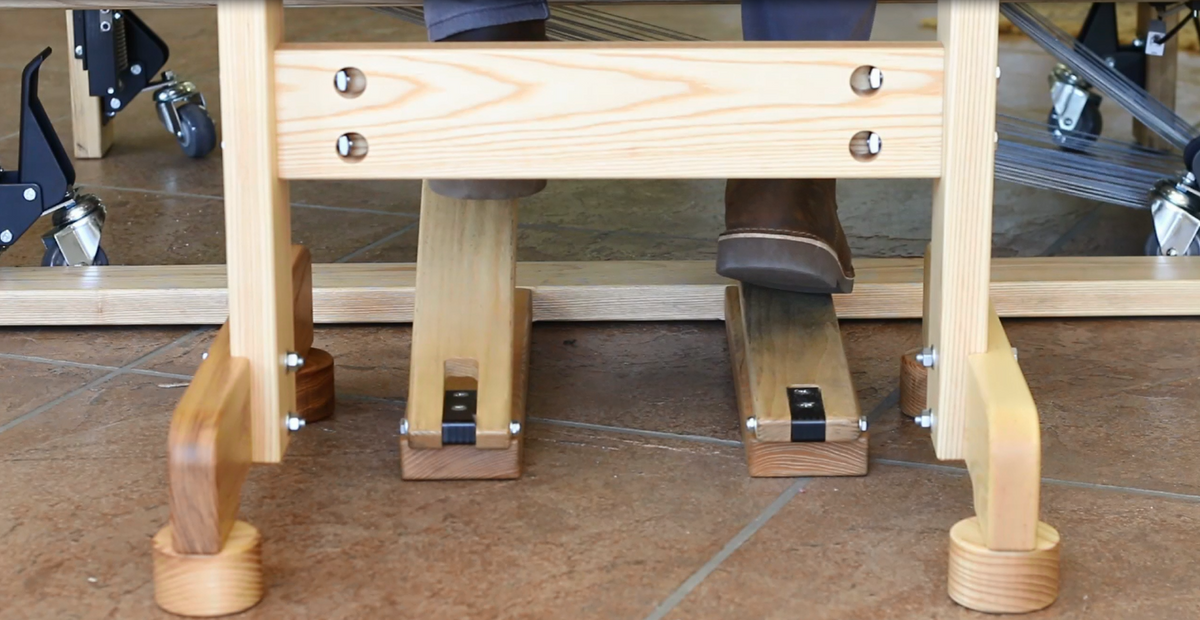

✔ Featherlight treadling – weave for hours without fatigue

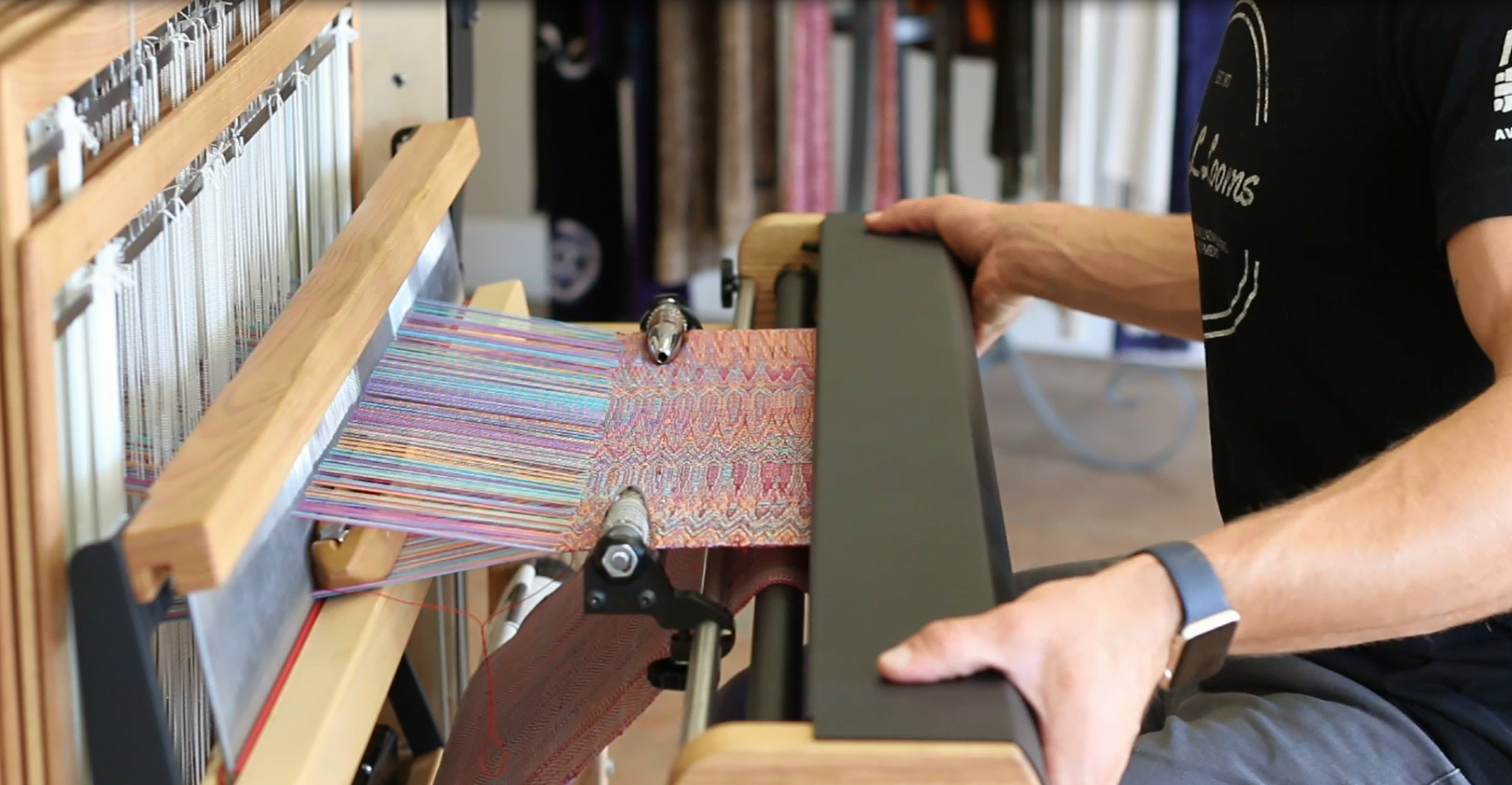

✔ Compact footprint – ideal for studio and home
✔ Kiln-dried hardwood – built to last more than a generation

Why the AVL K-Series?

Complex weaving, finally simple

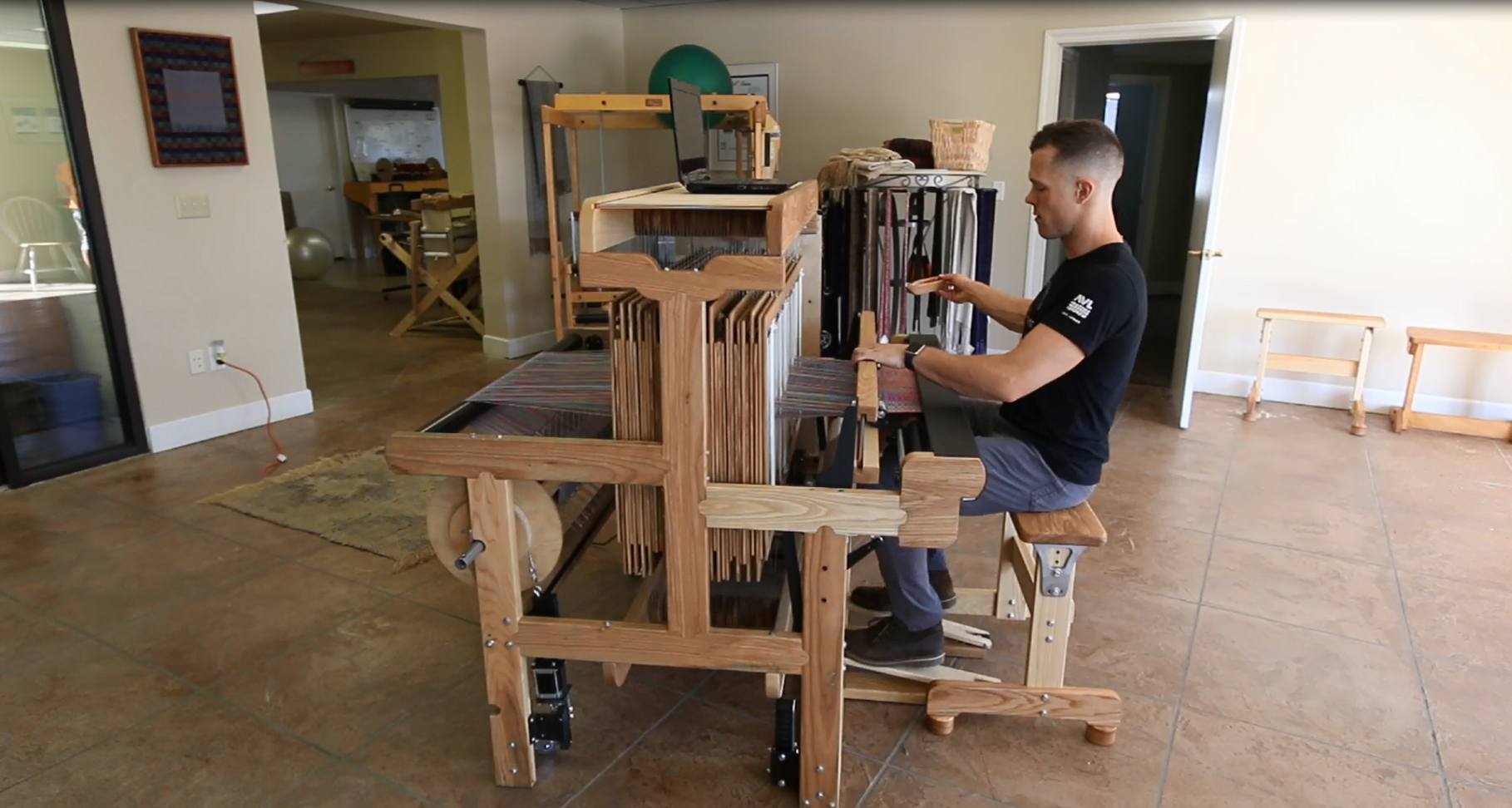

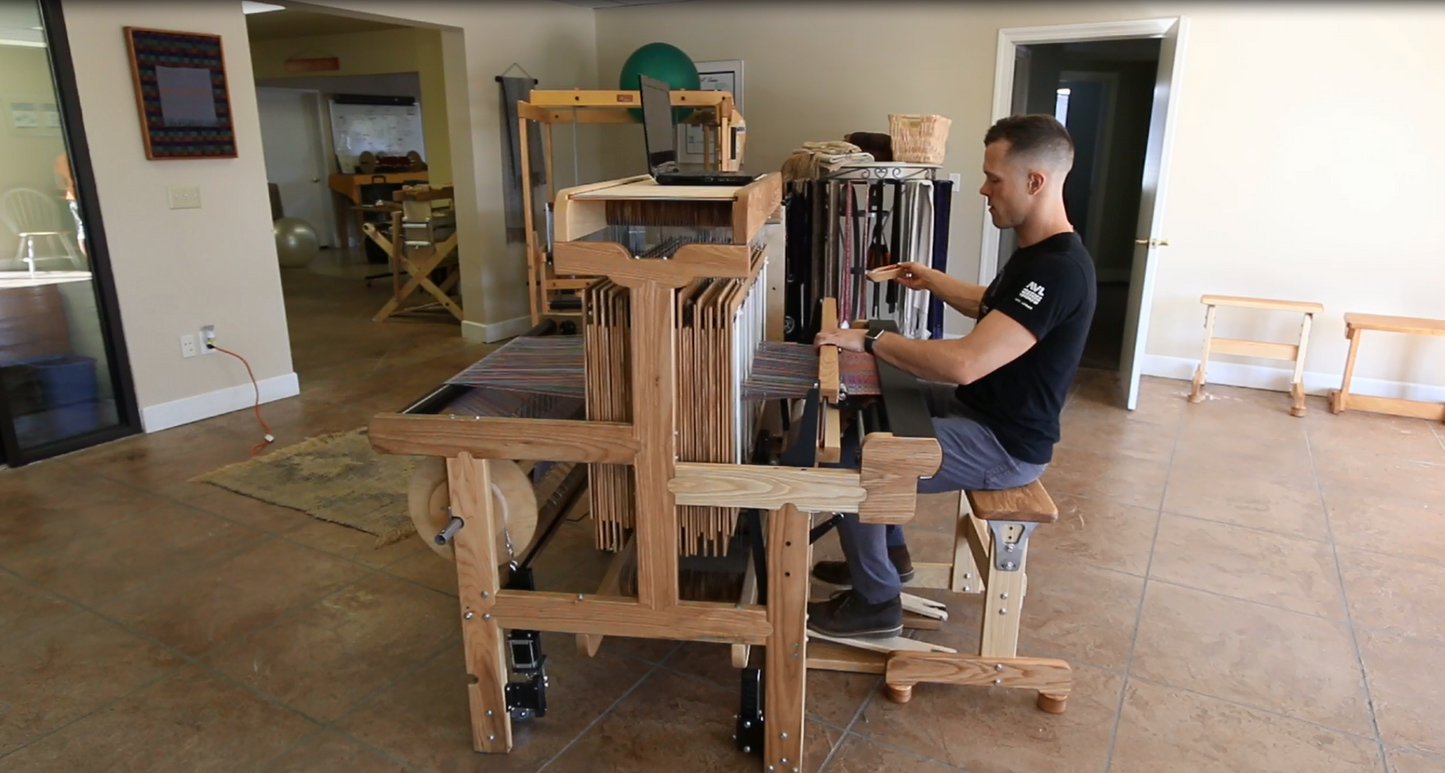

Up to 40 shafts, controlled via the integrated Compu-Dobby® directly in your web browser — no drivers, no complicated treadling sequences to memorize. Treadling stays featherlight, even with a full shaft build. Finally, you can focus entirely on your weaving project.

Digital precision — throughout
The digital warp tension and cloth storage system works continuously with you: no pausing to re-tension or advance. A project can be woven from start to finish in a single workflow — adjustments at the touch of a button included.

Ergonomics that mean business
Small footprint for studio and home, cloth storage cover, height- and tilt-adjustable bench, and the quietest Compu-Dobby® AVL has ever built. Your family and your pets will thank you.

Quality for generations
Kiln-dried hardwood with a unique high-strength joint system. A loom that outlasts a lifetime — including lifetime technical support for the original buyer.

Technical Specifications

Feature	61 cm (24")	76 cm (32")	102 cm (40")
Height	135 cm	135 cm	135 cm
Total width (incl. Compu-Dobby & beam handle)	118 cm	139 cm	159 cm
Depth (incl. sectional warp beam)	148 cm	148 cm	148 cm
Footprint	122 × 95 cm	122 × 116 cm	122 × 136 cm
Weight	132 kg	156 kg	179 kg

Feature	Details

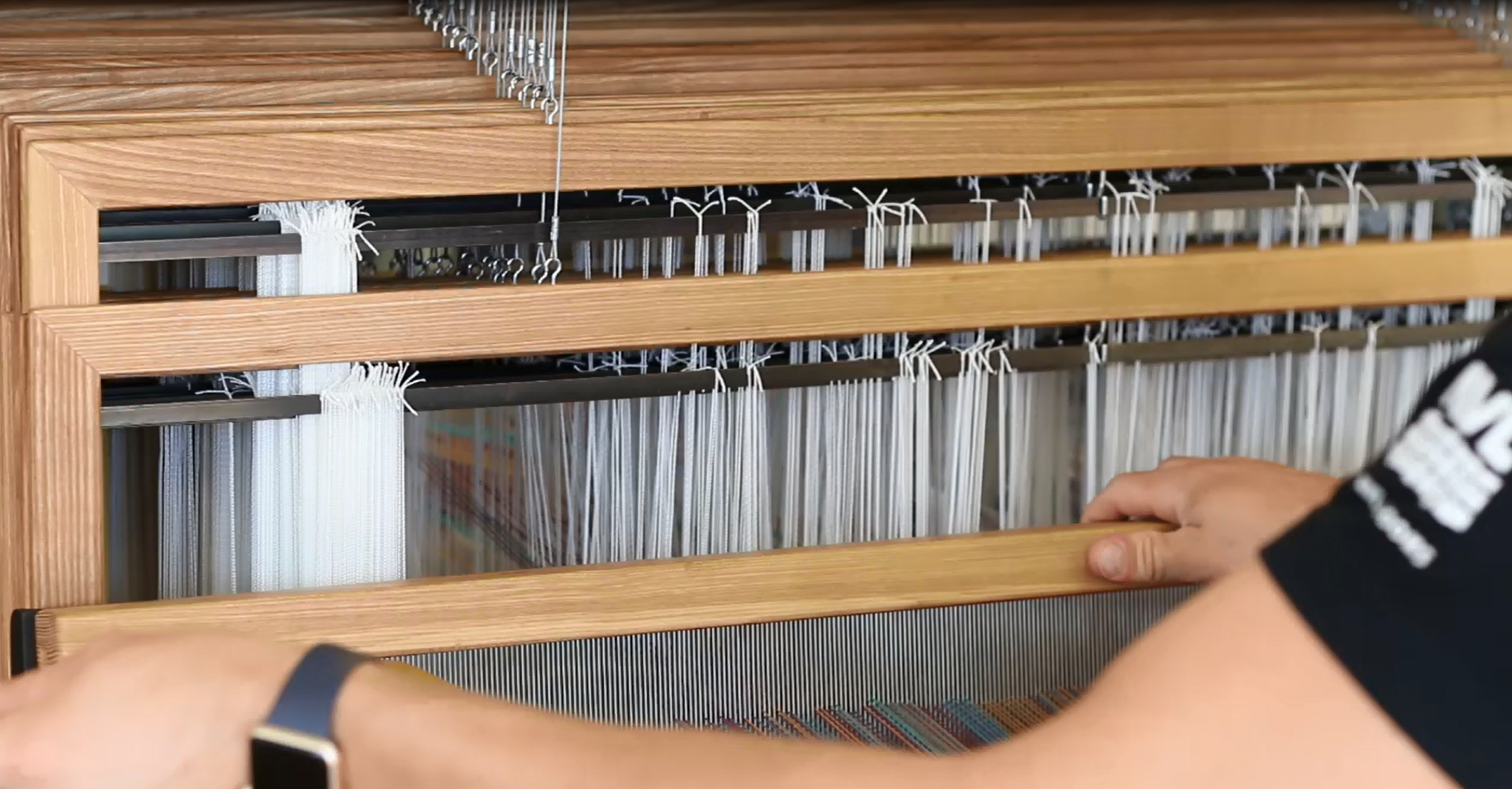

Shafts	8 / 16 / 24 / 32 / 40 (selectable)
Heddles per shaft	50 (61 cm) · 75 (76 cm) · 100 (102 cm) – polyester standard, metal optional
Reed	Stainless steel 24/10, 32/10, 40/10, 48/10, 60/10

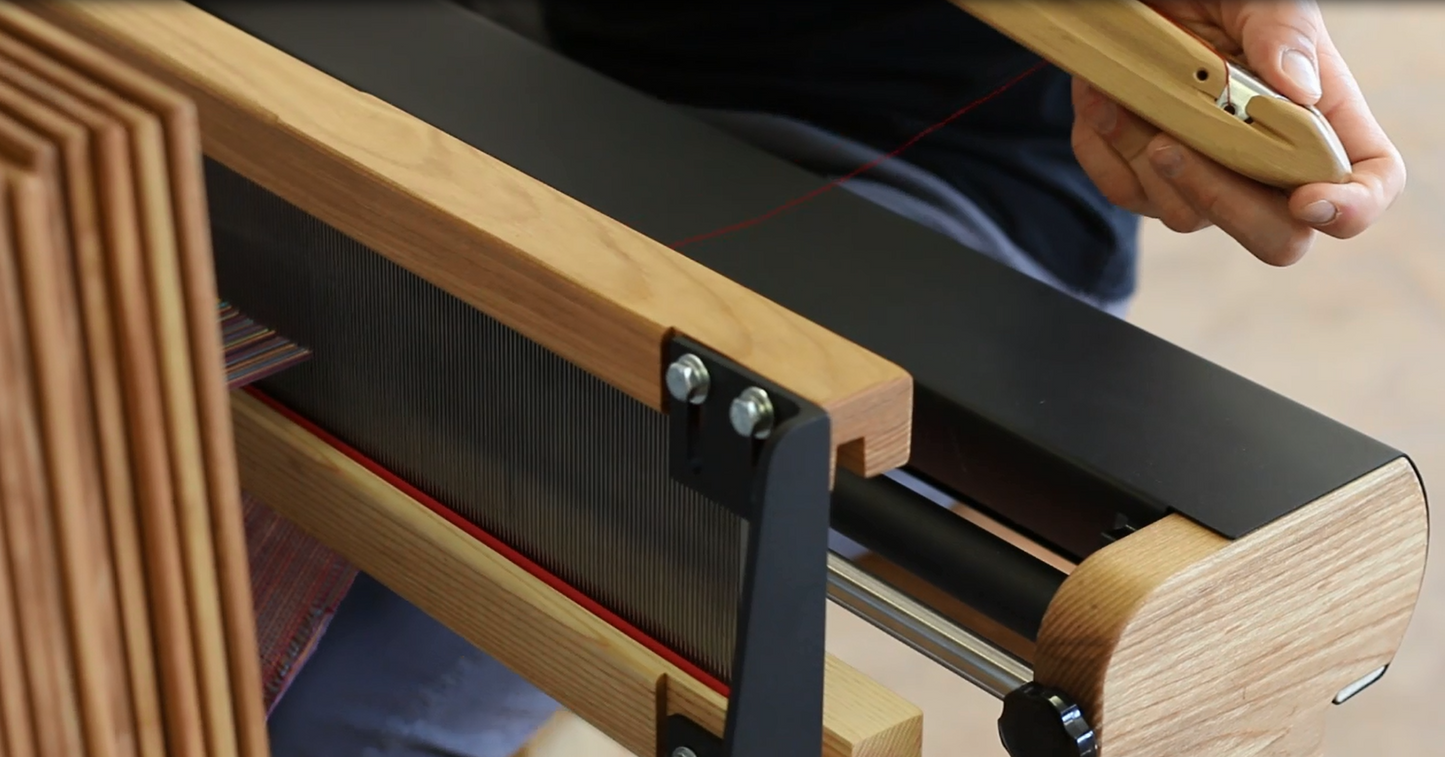

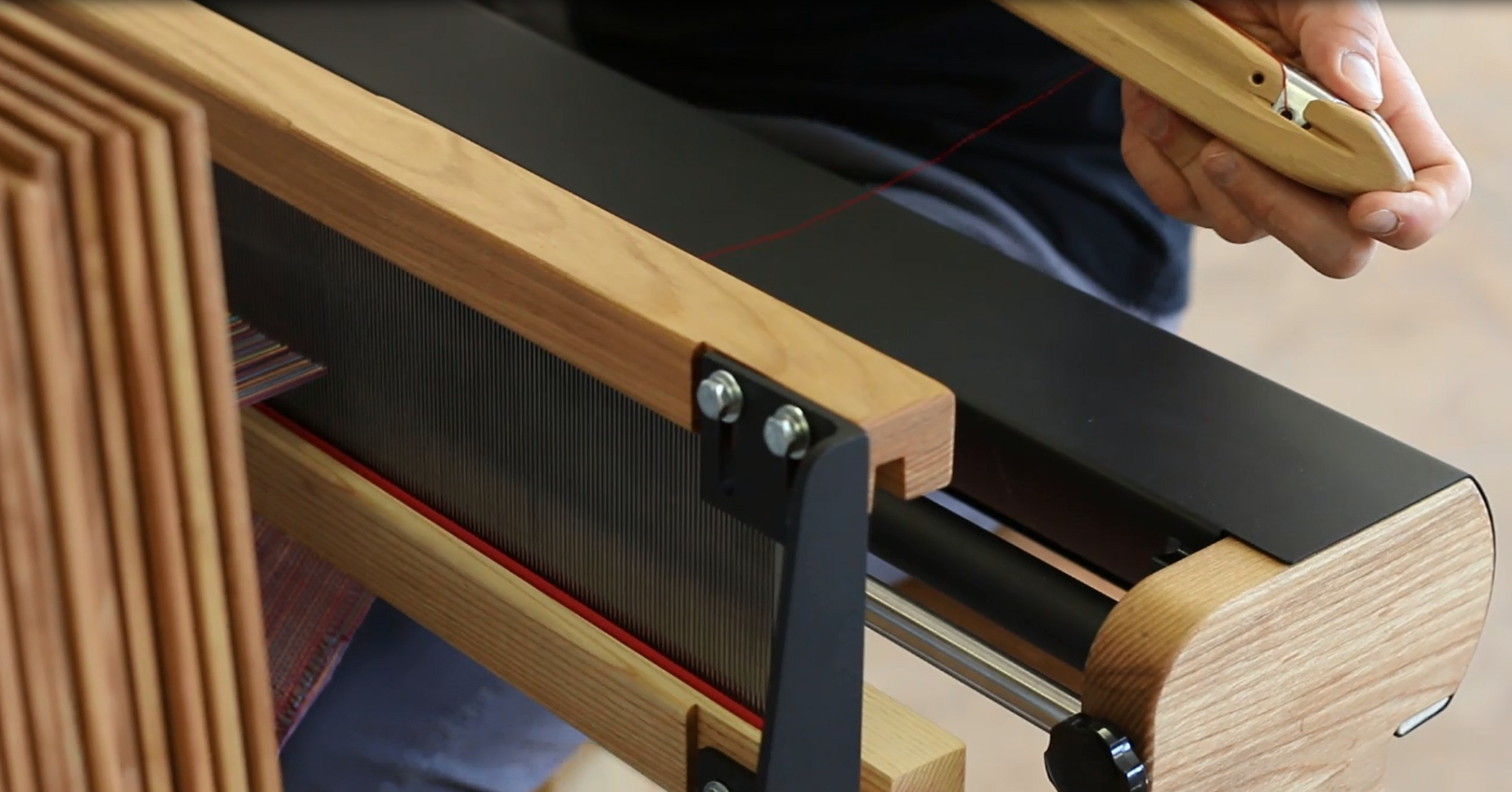

Warp beam	Digital sectional warp beam ½ yard, 2" sections (standard)
Beater	Standard underslung beater
Construction	Kiln-dried hardwood
Connectivity	WiFi & USB

What’s Included & Options

Included as standard:

• Integrated Compu-Dobby®
• Sectional warp beam ½ yard (2" sections)
• Stainless steel reed (dent of your choice at order)
• Printed and digital instruction manual

Optional upgrades:

• Plain warp beam (instead of sectional)
• 2nd warp beam (sectional or plain)

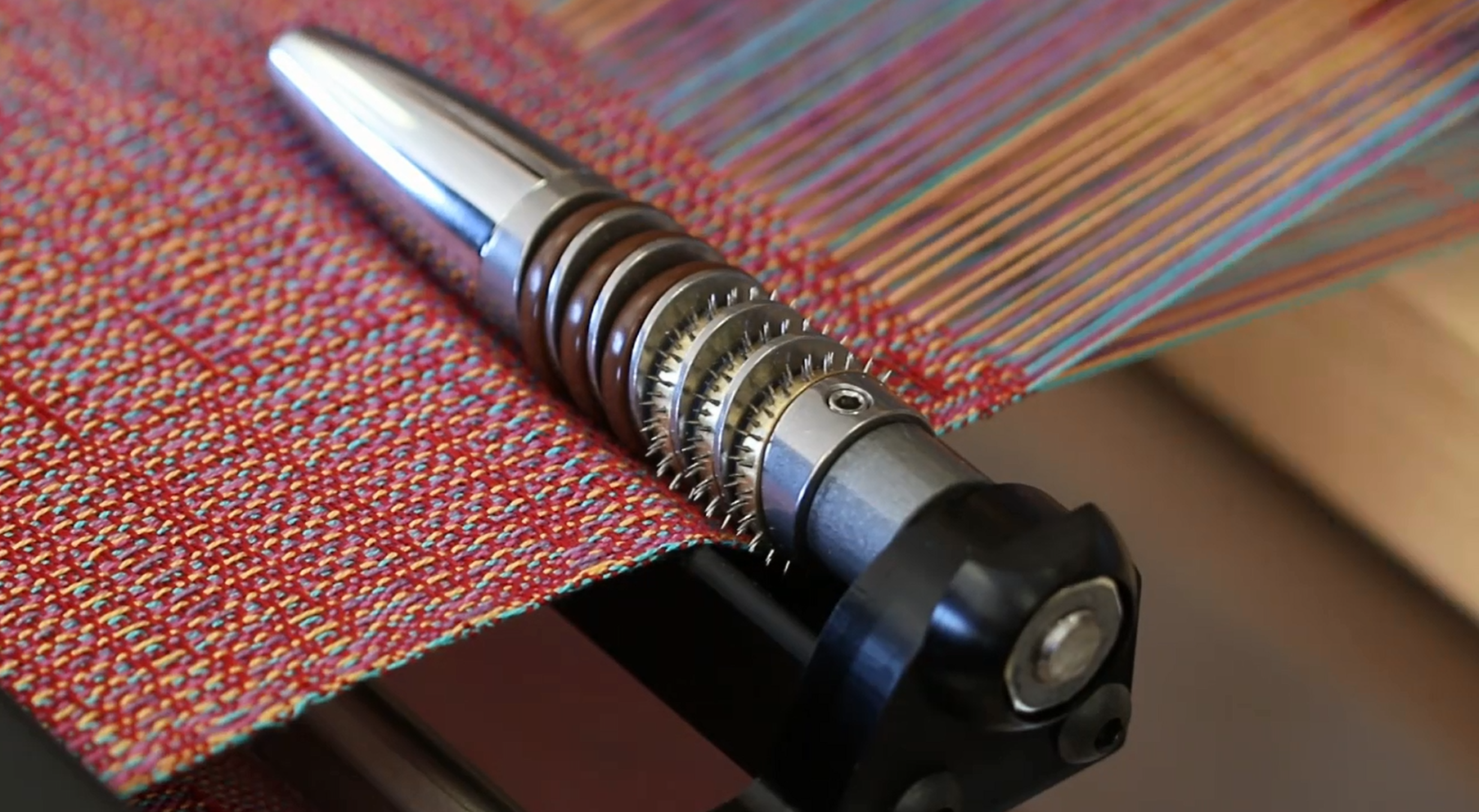

• Rotary temples (to maintain cloth width)
• Metal heddles (instead of polyester standard)
• Height-adjustable bench with tilt adjustment

Frequently Asked Questions (FAQ)

Do I need special software for the Compu-Dobby®?
No. The Compu-Dobby® is controlled directly via a web browser: no installation, no drivers. Simply connect via WiFi or USB with a laptop, tablet, or smartphone.

How many shafts can the K-Series have?
The K-Series is available with 8, 16, 24, 32, and 40 shafts — each in three weaving widths (61, 76, or 102 cm).

Can I adjust the warp tension while weaving?
Yes. The digital warp tension system allows adjustments at the touch of a button, without interrupting your weaving.

Is the K-Series also suitable for home use?
Yes. Despite its capabilities, the K-Series has a comparatively small footprint and is equipped with the quietest Compu-Dobby® AVL has ever built.

Which weaving width should I choose?
61 cm (24") is ideal for scarves, accessories, and narrower projects. 76 cm (32") is the versatile all-rounder. 102 cm (40") enables wide fabrics, tablecloths, and yardage.

Is the loom delivered assembled?
The K-Series is delivered as a kit with a detailed manual. We are here to support you during assembly and offer lifetime technical support.
